The Panasonic AG-MX70 combines an eight input video switcher, a multi-function digital video effects unit and an audio mixer into a single compact unit. With broadcast grade 4:2:2:4 digital component picture quality and more than 600 effect patterns and other professional features like logo animation, the AG-MX70 offers high-end performance in a digital post-production environment. The eight video inputs and tally outputs for up to eight cameras also make the AG-MX70 an ideal switcher for multi-camera live studio and event applications.

 Order, duane@avequipment4rent.com or Call 503-477-8972


Key Features




Advanced Studio and Post-Production Features

Designed for live camera production with genlock capable cameras, the AG-MX70 features tally outputs for up to eight cameras. (Genlocked signals can be mixed with other signals, allowing dissolves wipes, and other transition effects.)

Two-channel frame synchronization permits special effects in each of the two program busses. The AG-MX70 provides broadcast quality 4:2:2:4 digital component picture quality and wipe patterns that accommodate 16:9 and 4:3 aspect ratio production needs as well as a 30-frame graphics buffer for roll, crawl and logo animation. And the USB interface makes it easy to import graphic files.

The AG-MX70 also features digital chrominance and luminance keys, Mix Effects (M/E) preview, Down Stream Keyer (DSK) preview, Event Memory for storing favorite effects, a numeric keyboard for setting pattern numbers and other values and built-in color bars.

Convenient Operation

The large LCD control panel makes for quick, easy operation and monitoring of system status. A five-row matrix menu display with five rotary switches makes it easy to set the unit's multitude of functions. The LCD panel also displays audio level meters.

An easy-to-operate joystick allows users to intuitively position and size effects as well as select and adjust colors or perform color correction.

Digital Effects

The AG-MX70 can create more than 600 two-dimensional effects and transitions like key patterns, mosaics, paints, melts, trails and multi-images. Adding the optional AG-VE70P 3-D effects board delivers over 1600 three-dimensional effects, including page-turns, accordions, spheres and ripples. 2-D and 3-D effects can also be combined to create sophisticated image expressions.

Audio Mixing

The AG-MX70 provides versatile audio mixing with four stereo inputs (or embedded digital audio with the optional AG-YA70 SDI Board), plus two mono auxiliary inputs, one of which can be switched to a microphone level input. It has a 3-band equalizer on the audio inputs and a pitch change function for masking voice recognition, as well as four levels of audio adjustment from any of the four sources.

Flexible Configuration

Standard RS-422 (9pin) and RS-232 (25 pin) remote terminals and a GPI (General Purpose Interface) terminal allow the AG-MX70 to be integrated with an editing controller. (Full serial control of the AG-MX70 is possible with the Panasonic AG-A850 editing controller as well as the Sony BVE-2000, BVE-910, BVE-700 and PVE-500 models.)

Eight analog composite video inputs and four analog component inputs are standard on the AG-MX70. (Adding the optional AG-YA70 SDI Board gives the AG-MX70 a four-input, one-output serial digital component interface.) This is ideal for configuring an editing system with DVCPRO or other digital VTRs. A PC with the MX-Navi program can also be connected through the USB port. MX-Navi allows graphics files created with other applications to be downloaded into the AG-MX70. The AG-MX70 operates in both PAL and NTSC standard and supports true 16:9 aspect ratio production.

.

Video

Format: PAL 625/NTSC 525 (switchable)
Sampling Frequency: Y:13.5 MHz, Pb/Pr: 6.75 MHz, Key: 13.5 MHz (4:2:2:4)
Signal/NoiseRatio: 56 dB (Component), 50 dB (Composite or YC)
Quantization: 9bit (video sources), 8bit (external key and internal process), 10bit (D/A)

Audio

Sampling Frequency: 48 kHz
Quantization: 20bit
Frequency Response: 20 Hz-20 kHz (+/- 1.0 dB)
Dynamic Range: More than 85 dB
Headroom: 20 dB/18 dB (switchable)

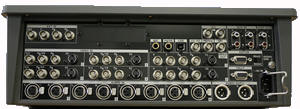

Input and Output Connectors

Video In
Analog Component: x4 BNC
Analog Composite: x8 BNC
S-Video: x4
External Key: x1 BNC
External Fill: x1 (BNC
Genlock: x1 BNC

Video Out
Analog Component: x2 BNC
Analog Composite: x2 BNC
S-Video: x2
Auxiliary: x1 BNC
Advanced Reference: x1 BNC

Audio In
Analog (L/R): x8 XLR, x4 RCA
Microphone: x1 M6

Audio Out
Analog (L/R): x2 XLR, x2 RCA
Headphone: x1 M6

Editor: D-sub 9 pin, RS-422/RS-232 switchable
Tally Out: D-sub 9 pin, Open-Collector x8ch
GPI: x1 BNC
USB: x1 Type-B (USB version 1.1)

Power Requirements

120 V AC, 50-60 Hz

Power Consumption

50 W (Standard), 70 W (With Options)

Dimensions

16 3/4 x 7 13/16 x 15 3/4" (425 x 198 x 400 mm)

Weight

Standard: 16.5 lbs (7.5 kg)
With Options: 17.6 lbs (8.0 kg)



50 inch disply with outstanding picture for, computer presentations, dvd movies and with use of a vhs tv turner a great TV
NEC
Resolution 1365x768
Aspect Ratio 16:9
Colors 68.7 billion colors
Dimensions 48.1in W 29in H 3.8in D

 50 Inch Pioneer or NEC Plasma Displays  Take the next step, rent a bigger display for your next event.  This display can be viewed from center isle at trade shows.  This larger size offers integrators and designers versatile installation options to suit virtually any application. Compare to the previous model, this model now produces 17% less heat and has an advanced environmental tolerance device which simultaneously reduces operating noise at 23%. The unit, although 50 diagonal inches, is surprisingly light weight and is one of the slimmest available on the market. With the 160 degree viewing angle, both vertically and horizontally, this plasma panel can be viewed from almost anywhere, even across the isles. Users can change aspect ratios from standard 4:3 to widescreen 16:9 format to accommodate DVD presentations and widescreen broadcasts. Screen Size 50-inch diagonal

Dimensions 48.1in W 29in H 3.8in D  Plasma Mfg. Information

use this with a vhs turner and the disply is a tv

 42 Inch NEC With 1024 x 768 XGA resolution, Advanced AccuBlend Technology and a 3-2 pull down converter ensure the best possible brightness, contrast, color and image quality from any source. Realistic color reproduction via NEC's exclusive Capsulated Color Filter Technology is now enhanced by AccuCrimson, a filtration technology that produces the purest shade of red yet possible in a plasma display. VGA to UXGA in both 16:9 and 4:3 aspect ratios Dimensions 40.1"x 24"x3.5"

 Hitachi 37 Inch Plasma Display  High-Resolution XGA: At 1024 x 768 pixels, XGA provides pictures nearly one and a half times as detailed as conventional VGA images. When viewed on the 's big 37" screen with .735 x .735 mm pixel pitch, the vivid, super-sharp XGA picture is simply breathtaking. Plus the is compatible with virtually any video or data source from PCs to DVDs, making it the ideal display solution for any corporate application from tradeshows and exhibits to presentations and training.  Plasma Mfg. Information  Model: CMP307XU
Display: 37",Resolution: 1024 x 768, true Aspect Ratio: 4:3
Screen Size: 22.2 x 29.6, Dimensions: 34.8 x 26.9 x 3.9

Cobra Plasma Stand

click for more information

To the right, our standard dual post floor stand designed to be used with any of our flat or tilting PDM series plasma wall mounts in the horizontal or vertical display mode. The dual 2" chrome posts allow for  height adjustability with (average is 5.5 ft. in height. Optional flat accessory shelf  installed above or below the display in a front or rear-facing mode.
To the left, our fancy cobra display with shelf.

Dual pole Plasma Stand

NEC LCD3000 LCD TV
  • 1280 x 768 resolution allows for crisp text and precise images
  • Virtually eliminates the potential for permanent image burn-in, contributing to optimal screen performance and longer monitor life
  • XtraView® technology allows for wide-angle viewing
  • PC and video
  • Detachable speakers deliver an enhanced multimedia experience with amazing sound quality
  • On Screen Manager (OSM®) puts you in complete control of display setting adjustments

 The Great Technology War: LCD vs. DLP If you are new to the world of digital projectors, you won't have to shop around the market very long before discovering that "LCD" and "DLP" somehow refers to two different kinds of projectors. You might not even know what LCD and DLP are before asking the obvious question "which one is better?"
Want a really BIG SCREEN...then use a LCD/DLP projector and connect your computer or even an VHS player/recorder (used as a TV tuner) and project pictures or presentations up to 15 feet by 20 feet.  (can go larger)
